ARTEC Onboard Mods

All of the ARTEC Modifications wire up the same basic way. Each unit has an In & Out, so it can be placed anywhere in your signal path (also allowing you to loop more than unit together). Follow the diagrams below for the unit(s) to function properly (if you wire them any way other than shown below, the unit will not work, and may be damaged).

A Few Special Notes & Tips: The diagrams below are interchangable for the most part (with the exception of the QTP which is Passive and does not require 9v Power). The Active units require standard 9v Battery Power. Running them at a higher voltage will not alter the sound, and will damage the device. Up to 4 units can be run from the same battery.

Click on a thumbnail image to see a larger view.

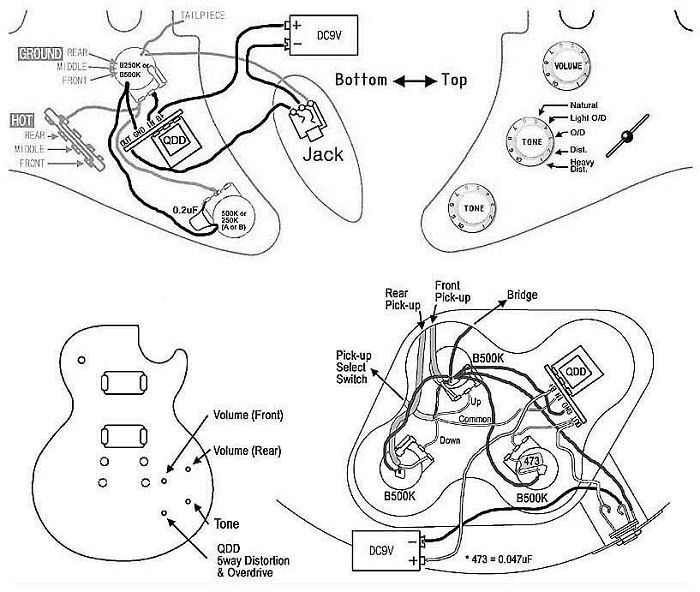

QDD or QDD2

sample photo

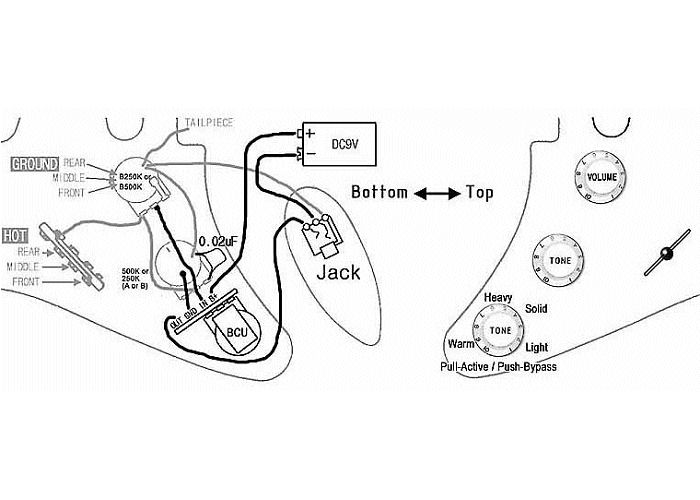

BCU

sample photo

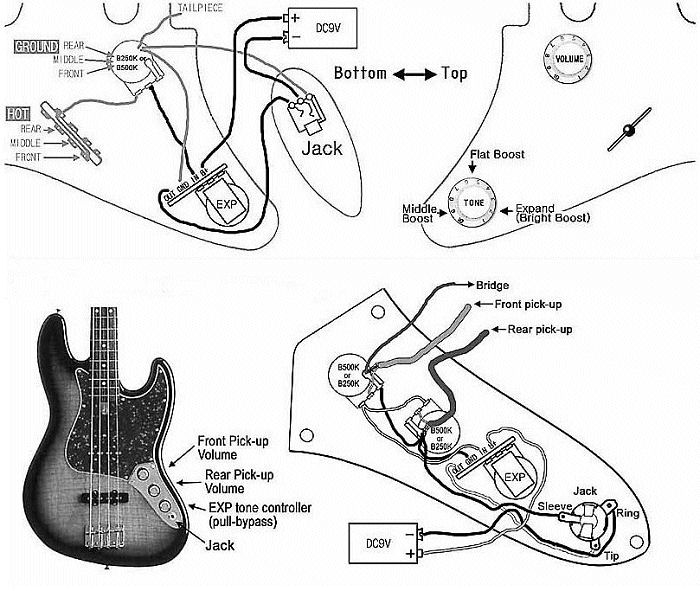

EXP

sample photo

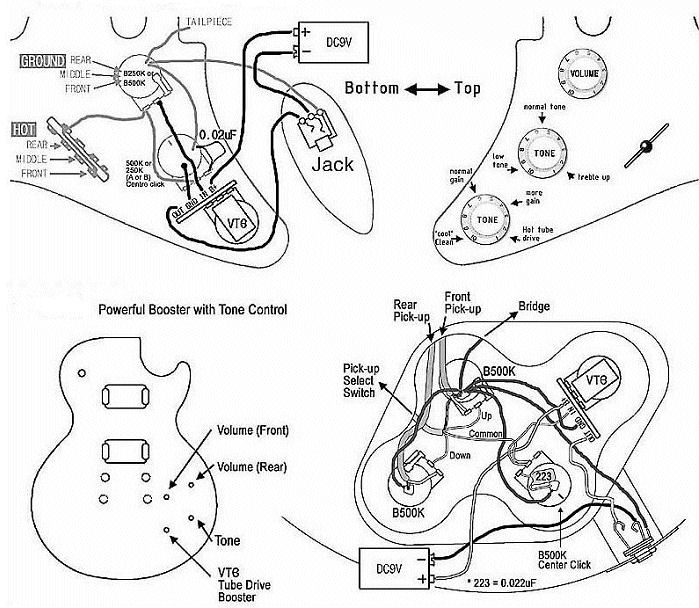

VTB or VTC

sample photo

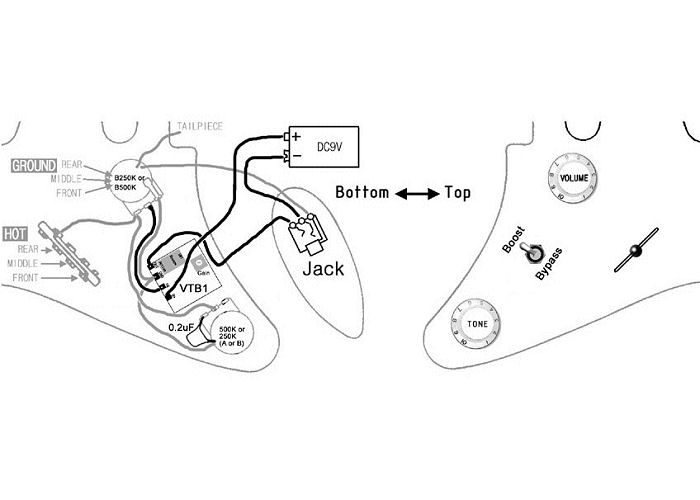

VTB-1

sample photo

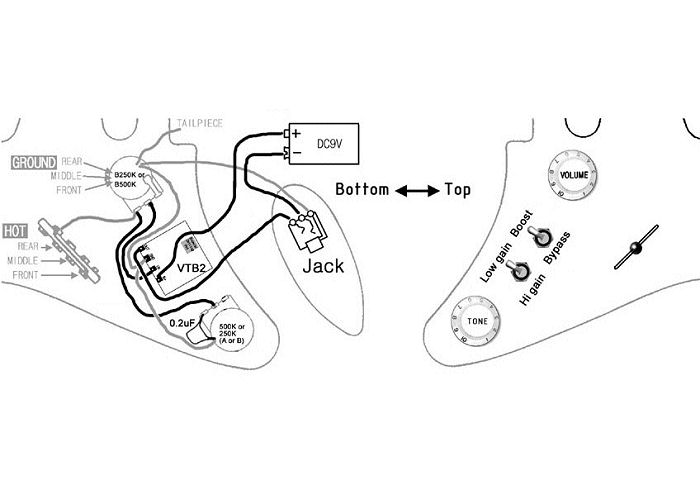

VTB-2

sample photo


EX3

sample photo

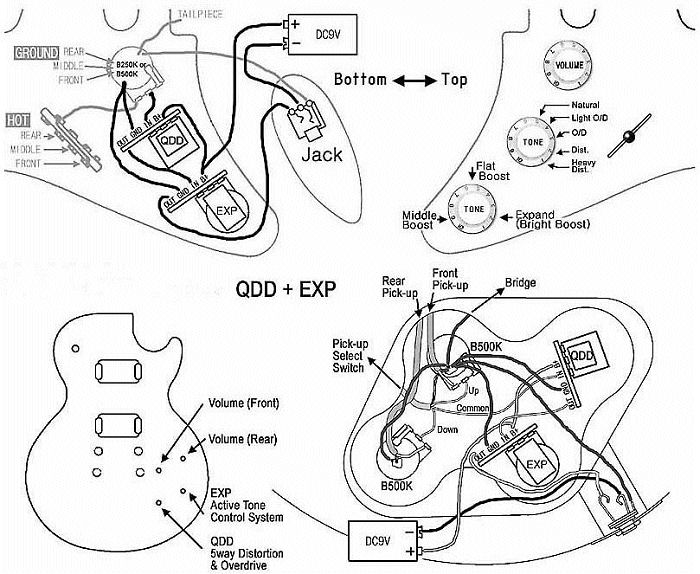

2 Active Units Together

sample photo

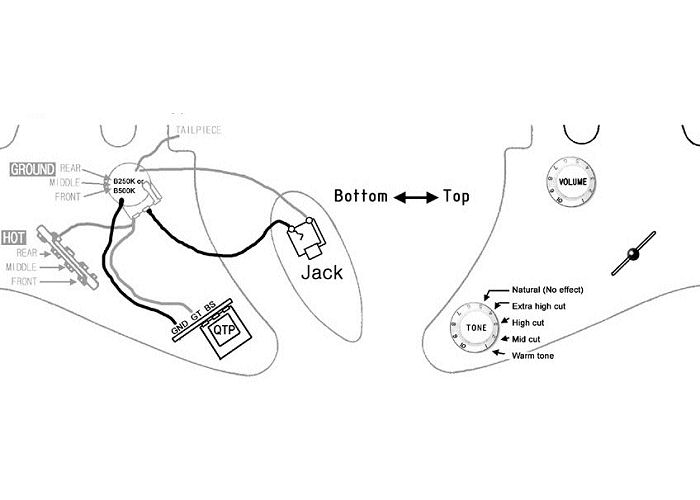

QTP (Passive)

sample photo
