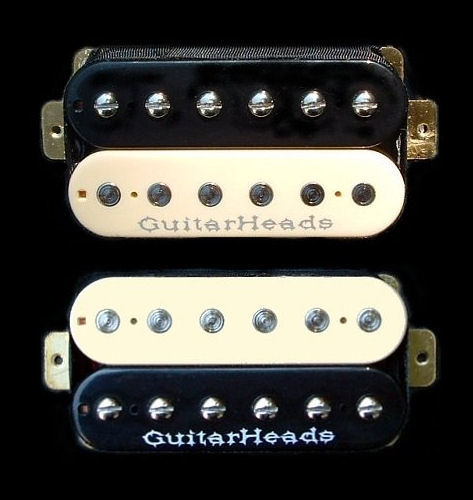

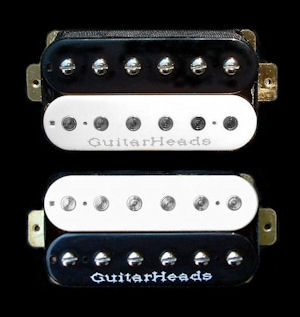

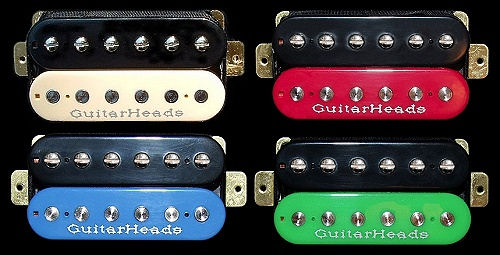

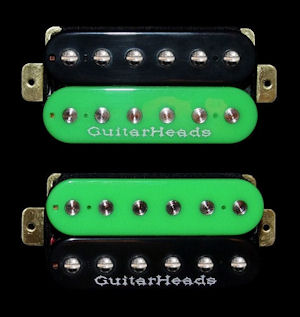

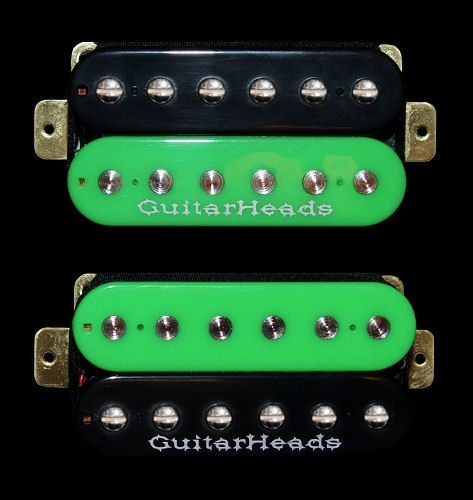

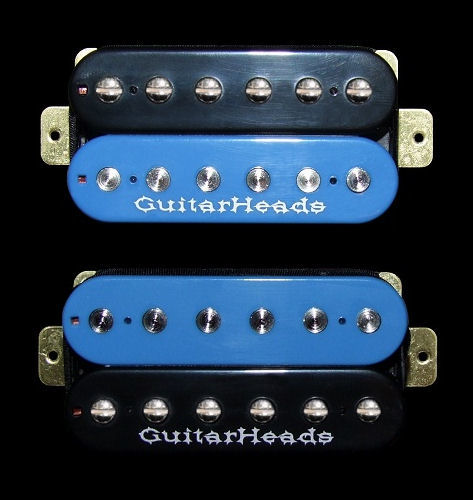

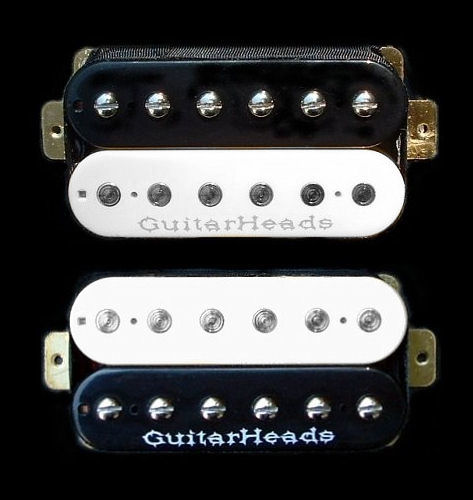

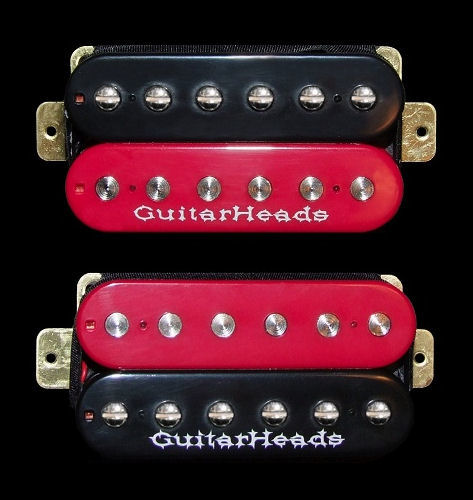

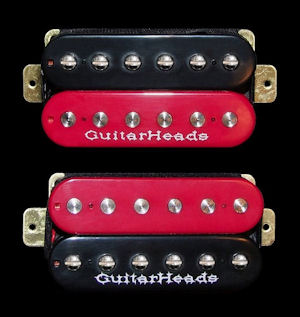

The GuitarHeads Z-Bucker offers all of the Mojo of your favorite Zebra-Coiled Classic, but with the Modern Punch needed to cut through a high-gain or digital mix. The Z-Bucker is driven by an Anisotropic Ferrite Magnet (a High-end Ceramic), and is Wax Potted for Microphonic Suppression. These pickups also feature a 5 Conductor Lead, allowing you to Tap the Coils for alternate wiring.

Bridge Position Model Neck Position Model
  • DC Resistance: 16.55K Ohms
  • AC Impedance: 8.5Z

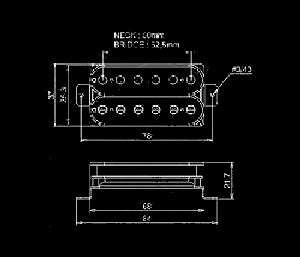

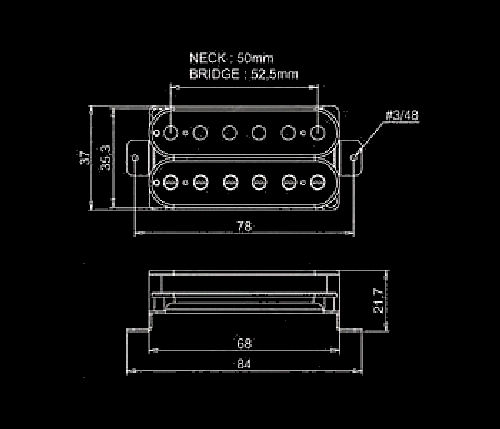

  • Pole Piece Spacing: 52mm
  • DC Resistance: 8.5K Ohms
  • AC Impedance: 4.6Z
  • Pole Piece Spacing: 50mm

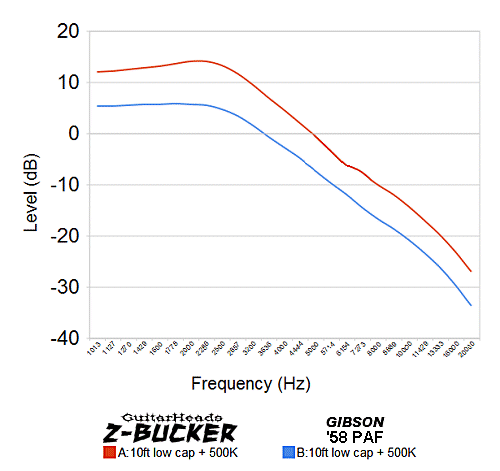

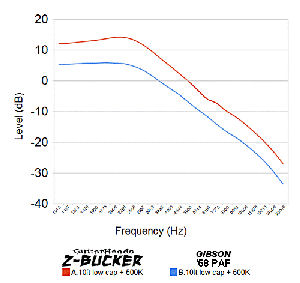

The Tone Frequency of this Pickup is very similar to the traditional EQ of the Gibson PAF, however the Z-Bucker delivers more overall output, as well as a tad more "bite" in the midrange. Click the chart below to see how these 2 pickups compare.


 Click to Enlarge

$49.99 - Set
